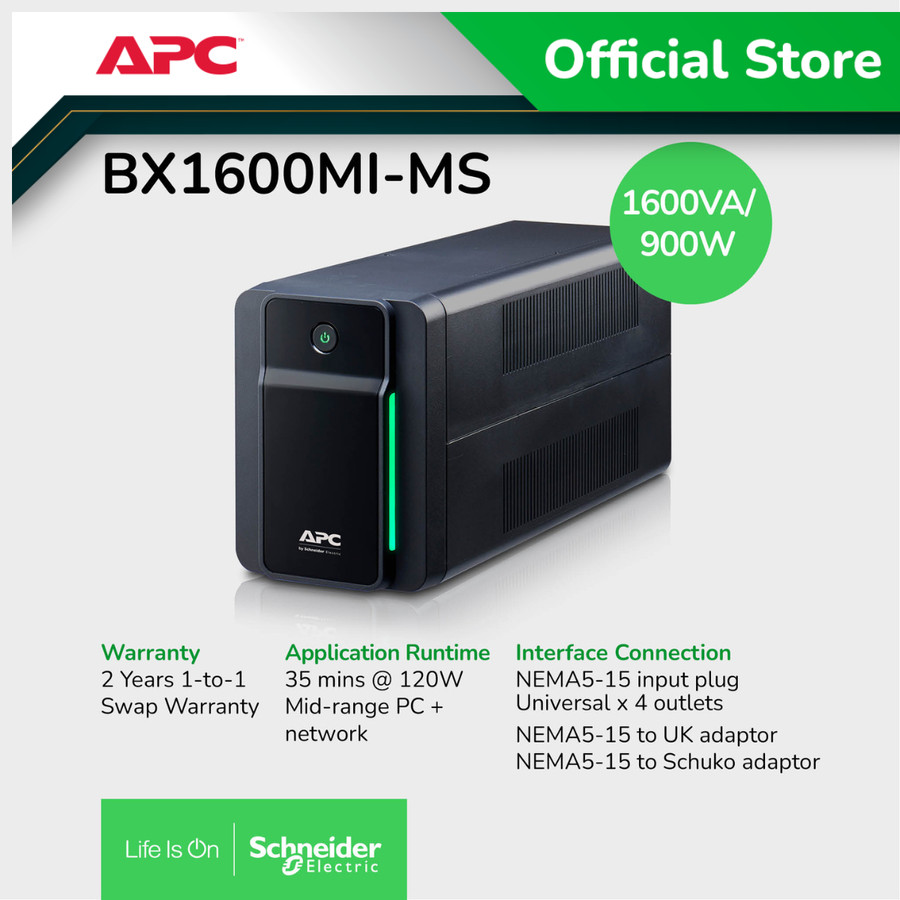

APC Back- BX1600MI-MS UPS, 1600VA, Tower, 230V, 4 Universal outlets, AVR

Output

Power Rating 1600VA900W

Nominal Output Voltage 230V

Output Voltage (On Battery) 230+/-10%@ 100% load
Output Frequency (Hz) 50/60HZ +/-0.5Hz
Topology Line Interactive
Waveform Type Stepped approximation to a sinewave

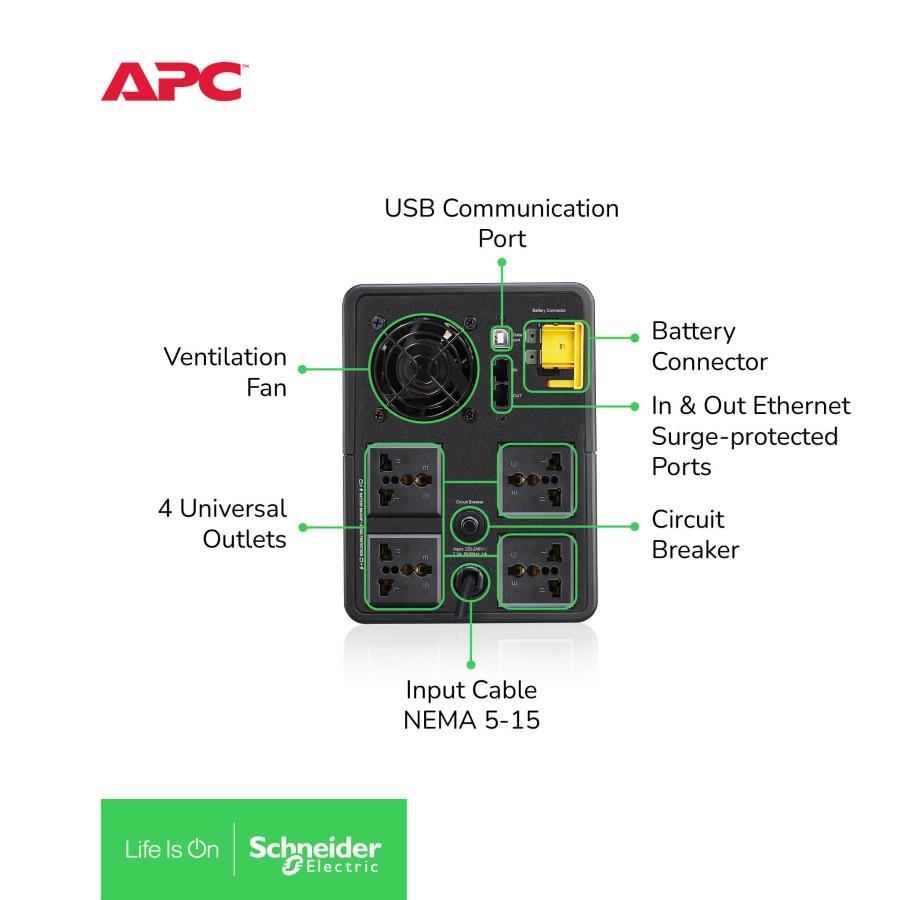

Output Connections (Battery
Backup)
2 Universal + 1 IEC 320
C13
2 Universal + 2 IEC 320
C13
4 Universal + 1 IEC 320
C13 4 Universal 4 Universal
Input
Nominal Input Voltage 230V
Input Connections NEMA 5-15P
Input Cord 1.2 m
Input frequency 50 Hz or 60 Hz
USB Charging No
Batteries & runtime
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte :
Typical Backup Time at ½
Load 6.5 min
Typical Backup Time at Full
Load 1 min
Typical Recharge Time 8 hours
Communications & Management
LED Indicators Visual LED indicators
Data Line Protection RJ 45 Gigabit
Interface Ports 273
Software PowerChute Personal Edition
Physical
Dimensions (HxWxD) mm 160 x 120 x 355 190 x 140 x 390
Weight (kg) 10.3KG
Environmental
Operating Environment 0 - 40 °C
Brand: APC
Warranty: 2 YEARS WARRANTY
Availability: In Stock
Rs. 78,000

UPS Features & Benefits :
- Intelligent battery management
- Battery failure notification
- Safety-agency approved
- Battery-protected and surge-only outlets

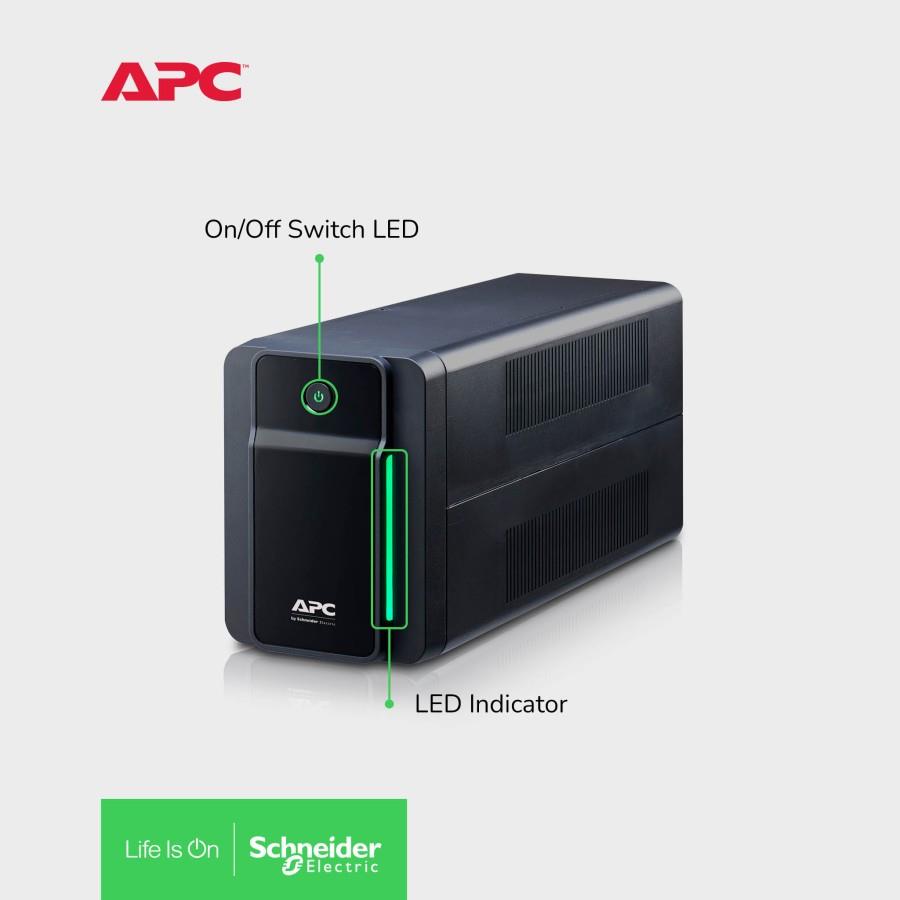

- LED Indicators
- Transformer-block spaced outlets- Boost Automatic Voltage Regulation (AVR) - Cold-start
capable - Quick Mute - Voltage Sensitivity Adjustment - PowerChute Personal Edition Software Technical Specifications : - Max Configurable Power (Watts) : 900 Watts / 1.6kVA - Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains - Topology : Line interactive - Waveform type : Stepped approximation to a sinewave - Transfer Time : 6 ms typical : 10 ms maximum - Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing - Input voltage range for main operations : 140 - 300 (230 V) VAC - Input Power Factor at Full Load : 0.56 - Battery type : Lead-acid battery - Typical recharge time : 8hour(s) - Nominal Battery Voltage : 12V - Expected Battery Life (years) : 1 – 2 - Battery Volt-Amp-Hour Capacity : 168 - Control panel : LED Status display with on line : on battery - Audible Alarm : Alarm when on battery : distinctive low battery alarm - Surge energy rating : 273Joules - Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection - Physical Maximum (Height x Width x Depth) : 190MM x 140MM x 390MM - Physical Shipping (Height x Width x Depth) : 297MM x 235MM x 495MM - Physical Net Weight : 10.3KG - Physical Shipping Weight : 11.3KG - Protection Class : IP20 - Operating Temperature : 0 - 40 °C - Standard warranty : 2 years repair or replace Attention : - For claim warranty please call at 1500055 (Call Center APC) - This UPS should not be recommended for Personal Computer / Server with active PFC Power Supplies
